Hoofdkenmerken:
Trillingsvrije pulsatiedemper
Leds geven visuele informatie over bedrijfsstatus.
Toepassingen:
Tot 16 kW / 54.000 Btu/h
Hoge wandgemonteerde splitsystemen
Links of rechts te monteren
Perfect voor... commerciële installaties waar stille werking essentieel is
Specificatie:
Max. debiet: 12L/h @ 0 opv.hoogte
Max. netto opvoerhoogte: 10m
Geluidsniveau: 20dB(A) @ 1m
Voeding: 230 V, 0.1A, 16W, 50/60Hz
Classificatie: Niet-continu
Veiligheidsklasse: II toestel
Max. vermogen unit: 16kW / 54,000 Btu/h
Max. watertemp.: 40ºC / 104ºF
Afvoerslang: 6mm binnendiam
IP bescherming: IP24
Veiligheidsschakelaar: ** 5,0 A potentiaalvrij met normaal gesloten-/normaal open-contacten. Bij levering af fabriek standaard ingesteld op normaal gesloten.
Thermische beveiliging: ✓
Geheel ingegoten: ✓
Zelfaanzuigend: ✓
Levering:

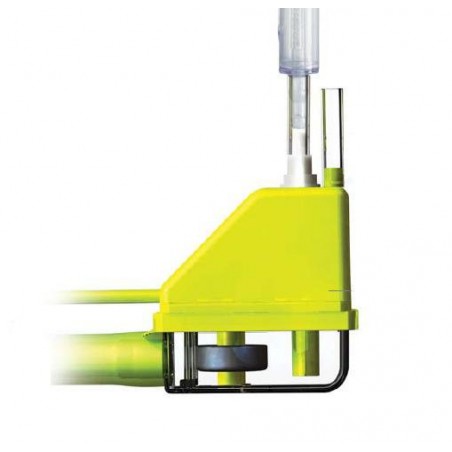

Silent+ Mini Lime pomp (inclusief 1,5 m vast aangesloten voedingskabel)
Trillingsvrije pulsatiedemper, hevelbeveiliging en afvoerslang van 500 mm met connector
00 mm lime-groene inlaatslang 14 mm binnendiam
40 mm vinyl ontluchtingsslang 6 mm binnendiam
Aansluitset afvoer
Montageset
Montagehandleiding
